Interlock Installation

Interlock installation in Ottawa

Bring paths, patios and other paved areas into your outdoor plans. Talk with our team about the layout and interlock work your property needs.

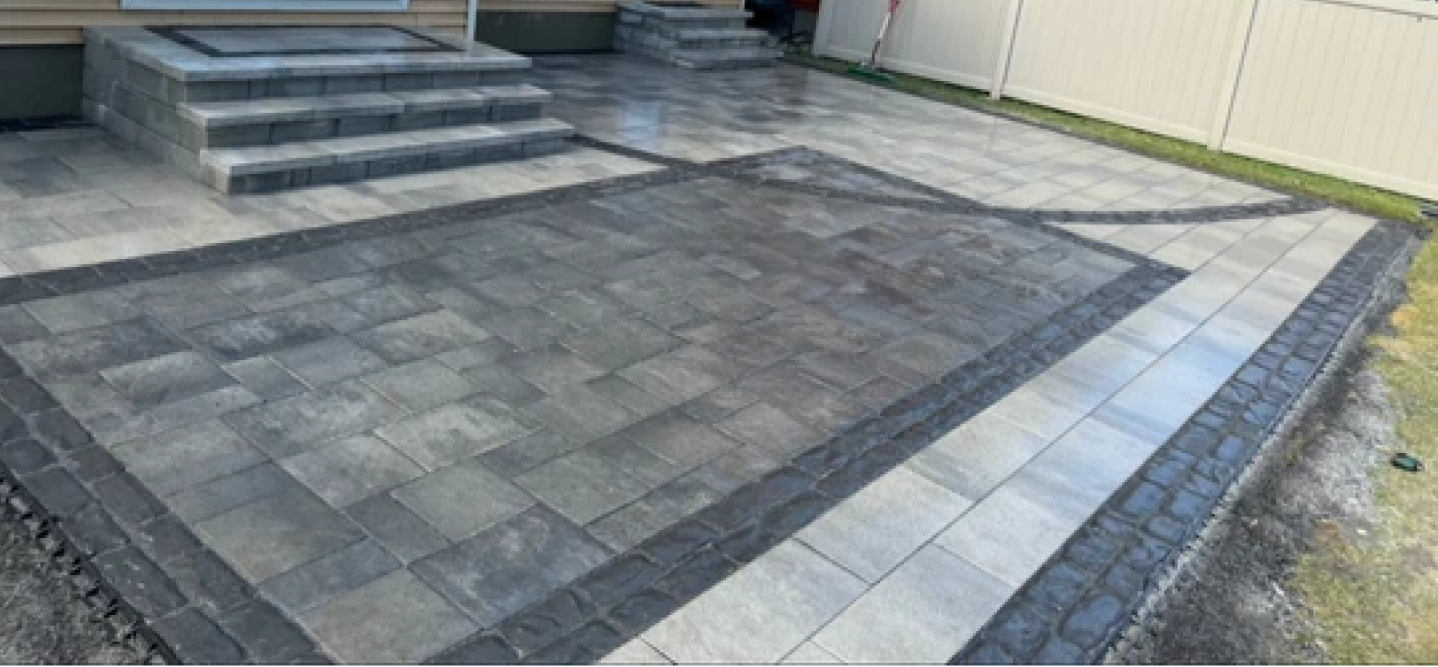

Grey paver patio with a dark patterned border, steps to a rear door and a white privacy fence along one side
Grey paver patio with a charcoal border.

What Is Involved

What interlock can cover

Interlock can connect a driveway, front walk, patio and the paved areas around steps. How each area is used helps shape the layout, paver selection and connections to the house and yard.

The surface is only part of the project. Ground conditions, base preparation, drainage, edge restraint and changes in level also need consideration.

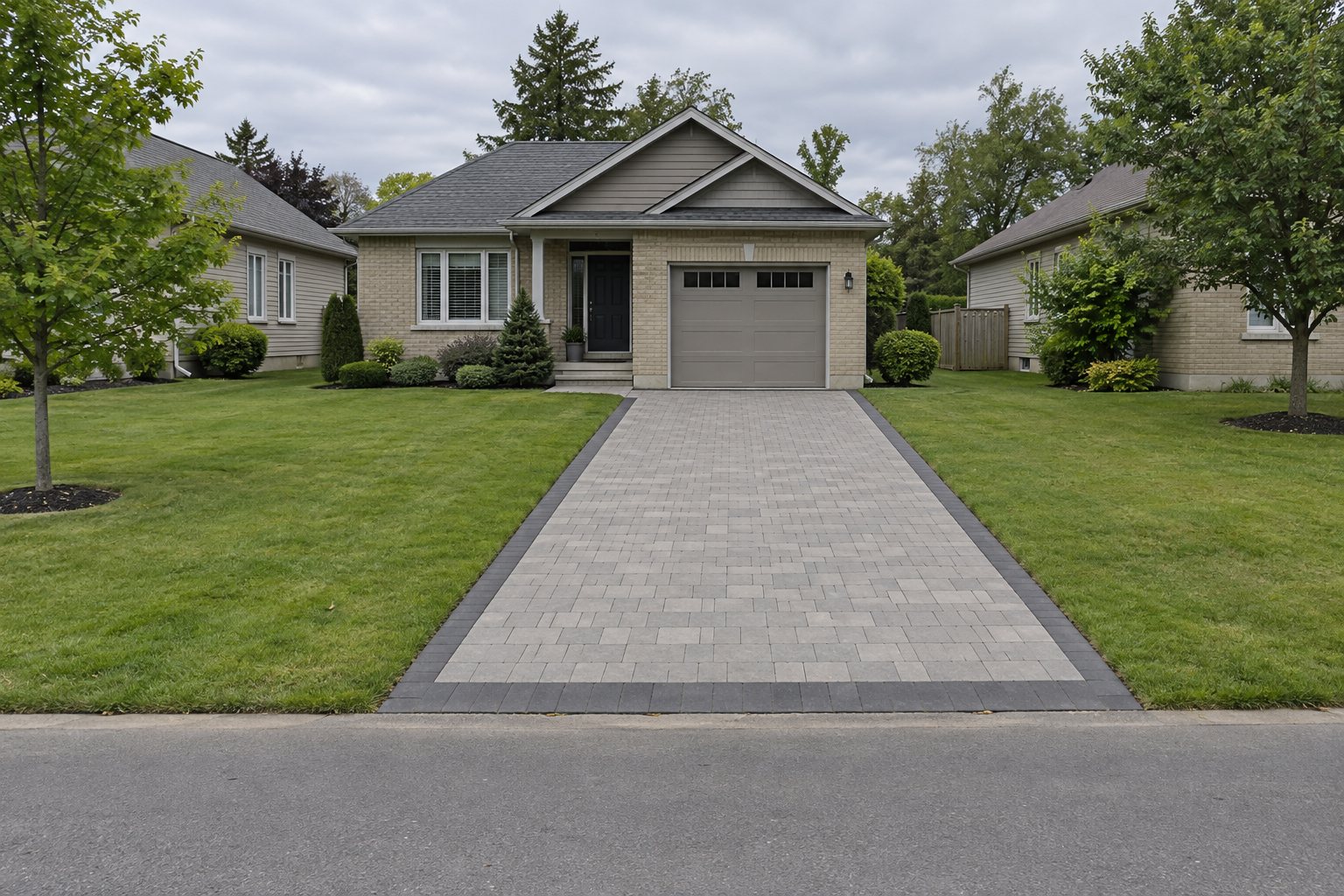

AI generated illustration of an interlock driveway beside a suburban brick home
AI generated driveway illustration. Not a completed Urban Living project.

Driveways

Vehicle loads influence the paver specification and the base below it. Garage thresholds, street connections and drainage are part of the layout discussion.

Walkways

Plan the route between entrances, parking and the yard. Width, turns and changes in level affect how the path is used.

Patios

Think about furniture, movement around it and connections to doors and paths. Layout and drainage both shape the paved area.

Steps and landings

Consider how paving meets steps, entrances and landings. Step construction, dimensions and support need their own assessment.

Project Considerations

What to consider before installation

Look beyond the finished pattern to the support beneath the pavers, the loads above them and the connections around their edges.

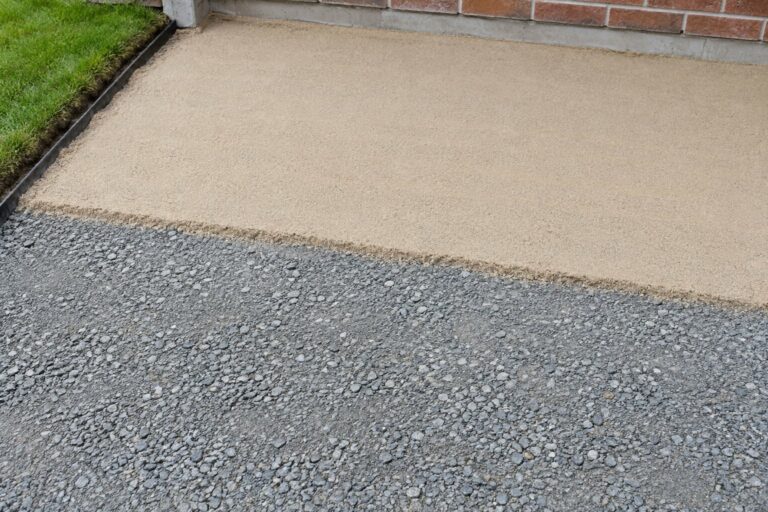

AI generated illustration of compacted aggregate with a thin layer of screeded bedding sand

Base and drainage

Ground conditions, water movement and expected use influence the base. A compacted granular layer supports the pavers, while bedding sand forms a separate layer above it.AI generated base preparation illustration. Not a completed Urban Living project.

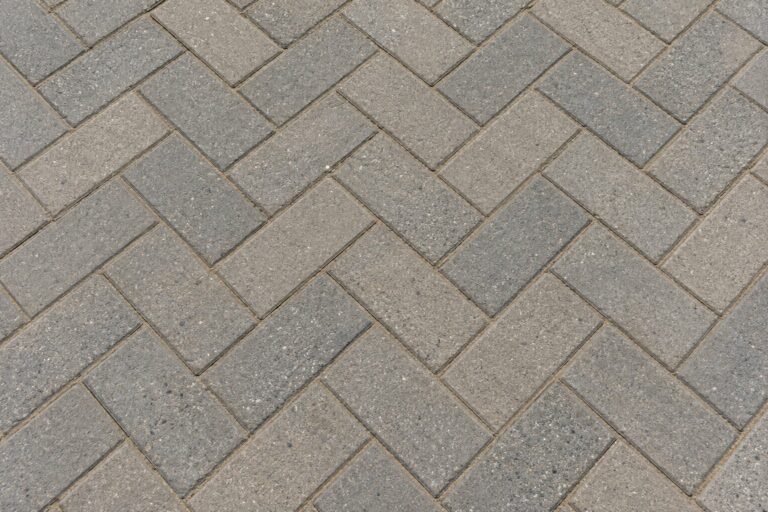

AI generated close view of grey rectangular pavers in a herringbone pattern

Pavers and loading

Paver thickness, size and laying pattern need to suit the intended use. A surface carrying vehicles has different demands from a path used on foot.AI generated paver detail illustration. Not a completed Urban Living project.

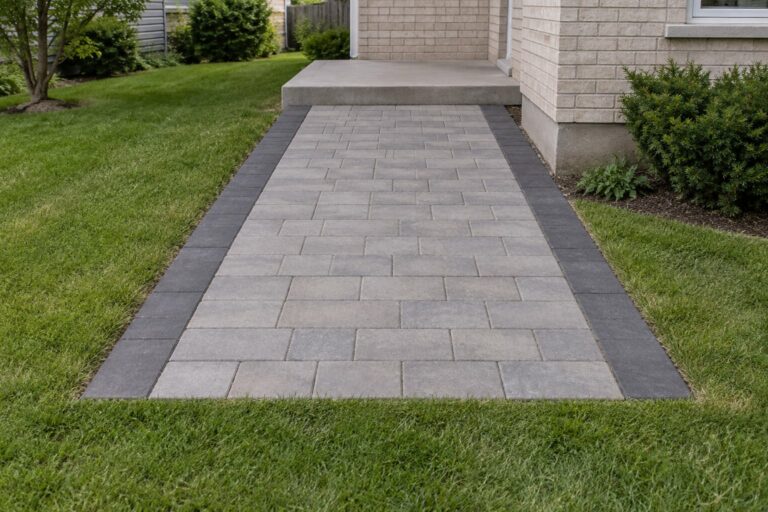

AI generated illustration of a grey paver walkway with a charcoal border course

Edges and connections

Borders define the layout, but edge restraint has a different job: helping hold pavers in place. Plan how the paving meets lawns, steps and adjoining surfaces.AI generated walkway illustration. Not a completed Urban Living project.

Illustrations show general considerations, not a construction specification.

Interlock Questions

Interlock installation questions

Base preparation depends on the existing ground, drainage and intended use. Organic material and unsuitable ground are typically removed before a granular base is placed and compacted in layers. The required excavation, aggregate and base thickness depend on site conditions and loading. Bedding sand does not replace a properly prepared base.

Bedding sand forms a thin, consistent layer between the prepared base and the pavers. It is screeded to provide an even laying surface. It is not intended to fill deep hollows or correct an uneven base. The bedding material should be compatible with the paver system.

Edge restraint helps prevent pavers from moving sideways. Jointing sand fills the gaps and helps transfer loads between neighbouring pavers. Both are part of the paving system. The choice of restraint and jointing material depends on the pavers, the surrounding surfaces and the product requirements.

A driveway must account for vehicle weight, turning and repeated loading. A walkway is generally designed around foot traffic. Those uses can call for different paver thicknesses, laying patterns and base construction. The intended use and the paver manufacturer’s guidance should inform the specification.

Freezing water in the ground can lift paving, and thawing can leave an uneven surface. Settlement can also relate to soil conditions, drainage, compaction or loading. The cause needs assessment before deciding on repairs. Base preparation and water management help address these risks, but do not make paving immune to seasonal movement.

Snow can be cleared from pavers, but equipment and technique matter. Check the paver manufacturer’s guidance on snow clearing and deicing products. Blade edges and settings should suit the surface. A blade that catches a raised paver can damage its edge.

Requirements depend on the location and scope of the work. Changes to a driveway entrance, work near a public right of way, steps and changes in grade can involve different rules or approvals. Check current City of Ottawa requirements before work begins. Grading also needs to account for runoff near the house and neighbouring properties.

Share the property location, photos from several angles, approximate dimensions and whether the area will carry vehicles or foot traffic. Note existing paving, steps, access constraints and any puddles or changes in level. A simple sketch and reference images can help explain the layout you have in mind.

Tell us about your interlock plans

Share the areas you want to change and the questions you have about your property. Photos and approximate dimensions can help explain the work you have in mind.

Our Work

Explore paving and step details

Browse existing site photos of paving and step details. These images are not identified as examples of a specific project. Browse more photos to see other outdoor work.

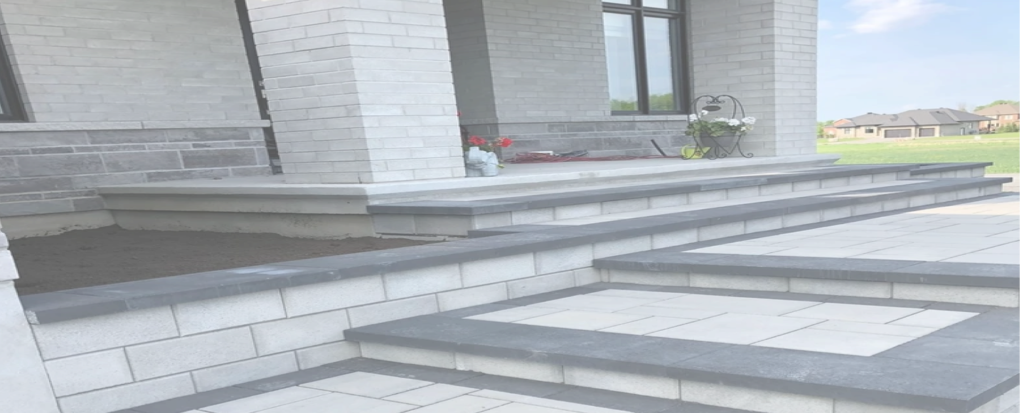

Wide view of light slab steps with dark caps running along the front of a brick house to a paved landing
Grey slab steps beside a light brick house.
Light paving slabs framed by dark border courses forming steps up to a house entrance
Steps and paving slabs.
